PUMP GROUP BST 68.16 6RZ BST 68.20 6RZ
Standard | Optional | |
Theo. Conc. Output (max) (Piston Side) | 160 m³/ h | 200 m³/ h |
Theo. Conc. Pressure (max) (Piston Side) | 81 bar | 81 bar |
Stroke | 26 Stroke / min | 27 Stroke / min |
Concrete Cylinder Dimensions | 250 mm x 2100 mm | 250 mm x 2500 mm |
Hopper Capacity : 650 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Pump : 67 lpm
Water Tank Capacity : 1000 l and Hose 15 m
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box

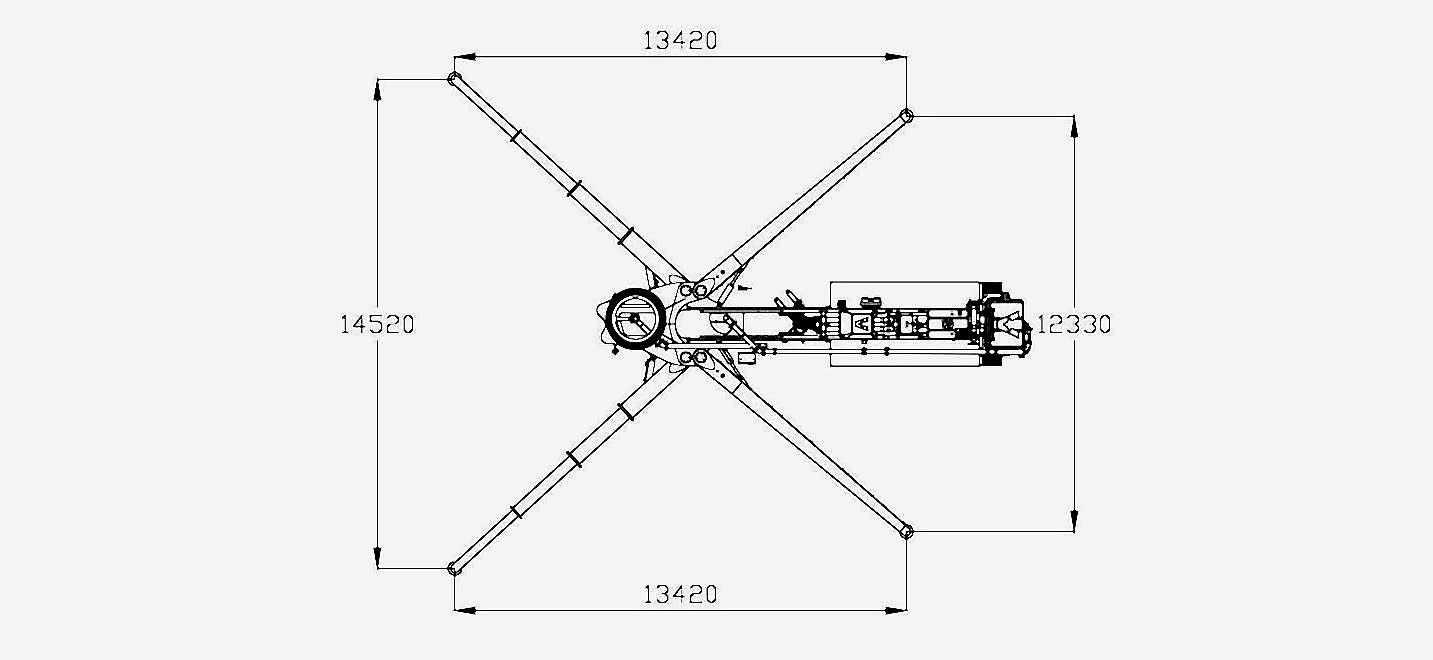

Front Legs : Side Hydraulic Swing
Rear Legs : Side Hydraulic Swing
Smartstar Control
Color LCD
Rear Keyboard
Diagnostic
Fuel Saving Mode
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (160 bar)
■ Betonstar IoT System
■ Remote Control (HBC)
■ Water and Oil Tank Heater
